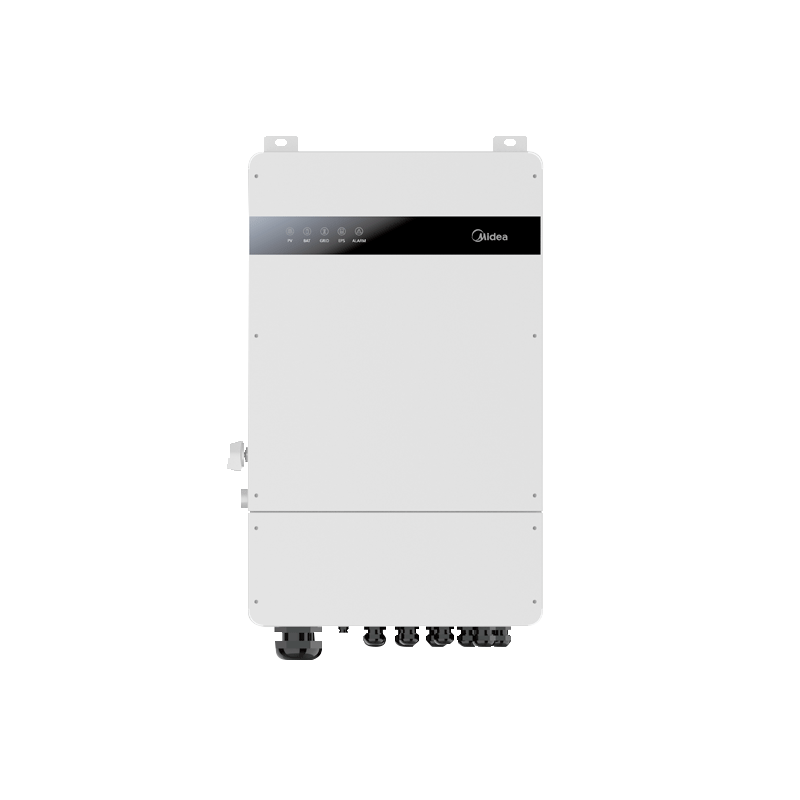

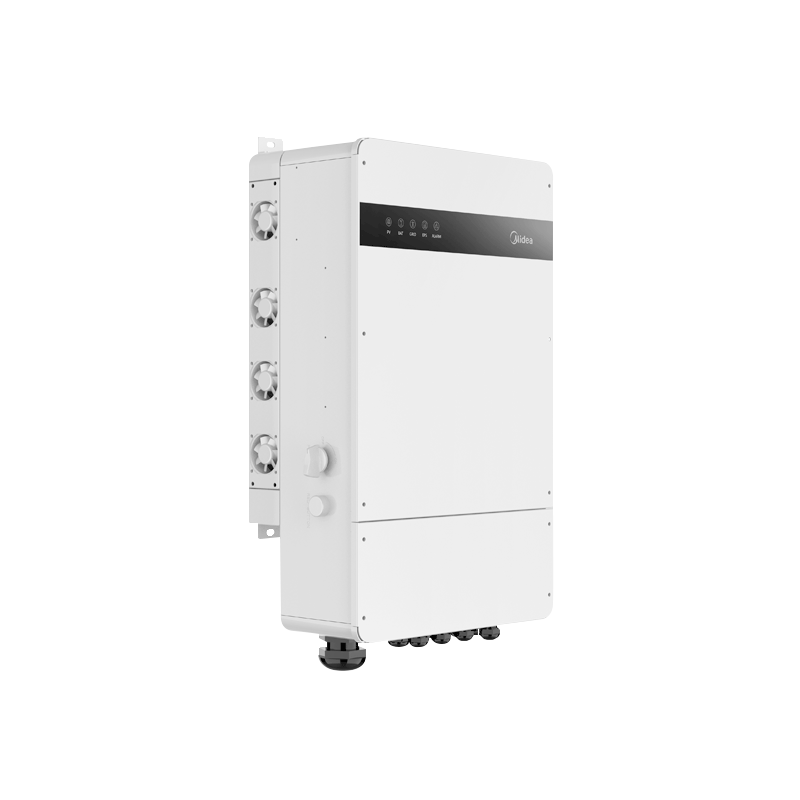

Single Phase ESS Hybrid Inverter 8kW

Compatible with Smart Low Voltage ESS

• 4 MPPT trackers
• Supports standby diesel generator
• Typical 10ms fast transition to backup mode during power outage

Input Power & Voltage (PV)

• Max. PV Power (W): 12000
• Max. PV voltage (V): 500
• MPPT voltage range (V): 120 ~ 500

Input (BAT)

• Compatible battery type: Lithium-iron/Lead-acid
• Battery voltage range (V): 40 ~ 60
• Max. discharge current (A): 190

Output (Grid)

• Rated output power (VA): 8000
• Rated AC voltage (V): 230
• Power Factor: 0.8 lagging-0.8 leading

Efficiency

• Battery charge /discharge efficiency: 97,20%
• DC Max. efficiency: 97,00%
• MPPT efficiency: 99,90%

General Data

• Max. operation altitude (m): 2000
• Noise emission (dB): <35
• Dimensions – W*D*H: 460*225*760
