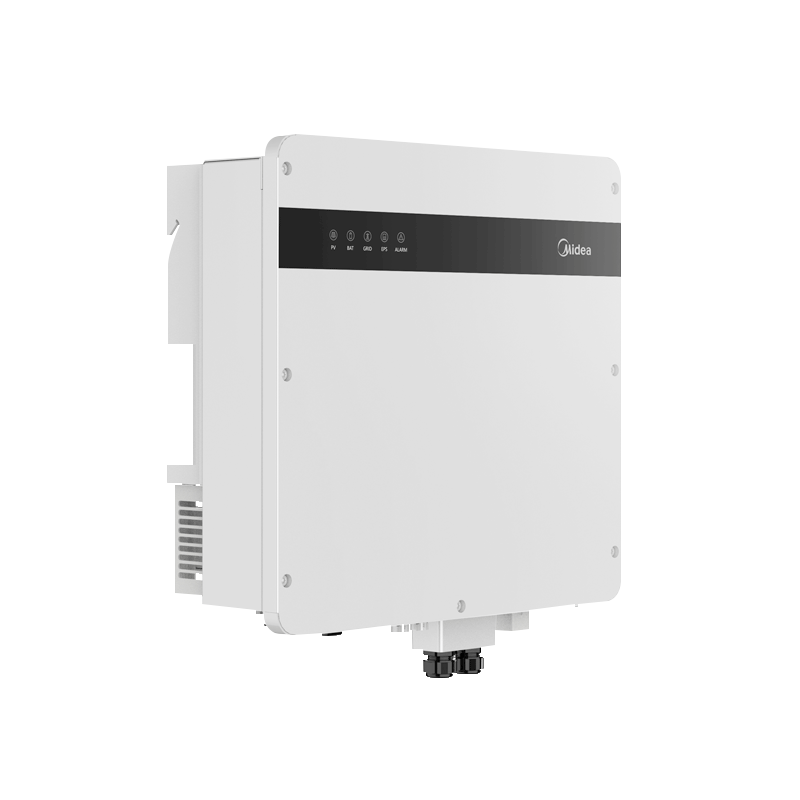

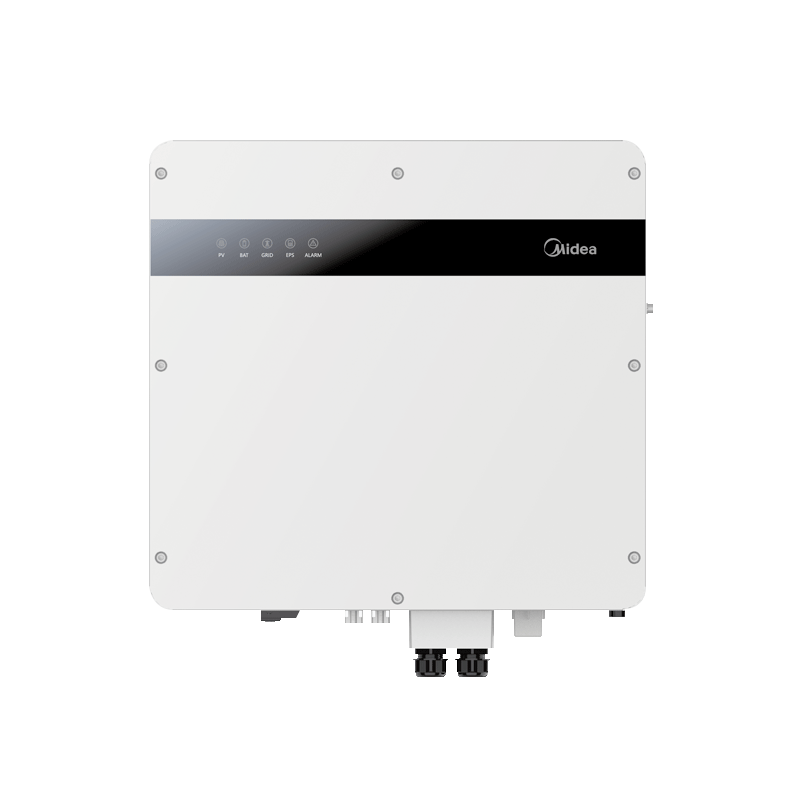

Single Phase ESS Hybrid Inverter 5kW

Compatible with Smart Low Voltage ESS

• 2 MPPT trackers
• Up to 9 000W PV Power Input (Watts)
• High Yield
• Typical 10ms fast transition to backup mode during power outage

Input Power & Voltage (PV)

• Max. PV Power (W): 9000
• Max. PV voltage (V): 550
• MPPT voltage range (V): 90 ~ 520

Input (BAT)

• Compatible battery type: Lithium-iron/Lead-acid
• Battery voltage range (V): 40 ~ 60
• Max. discharge current (A): 120

Output (Grid)

• Rated output power (VA): 5000
• Rated AC voltage (V): 220
• Power Factor: 0.8 lagging-0.8 leading

Efficiency

• Battery charge /discharge effciency: 94%
• DC Max. efficiency: 97,3%
• MPPT efficiency: 99,90%

General Data

• Max. operation altitude (m): 2000
• Noise emission (dB): <35
• Dimensions – W*D*H: 550*200*520
