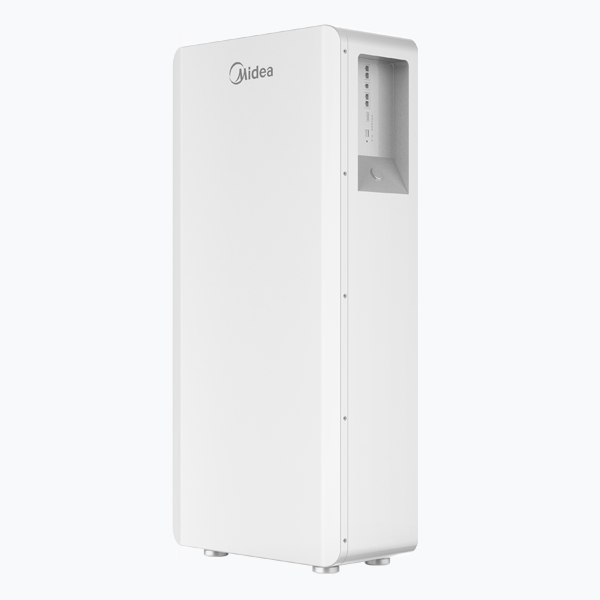

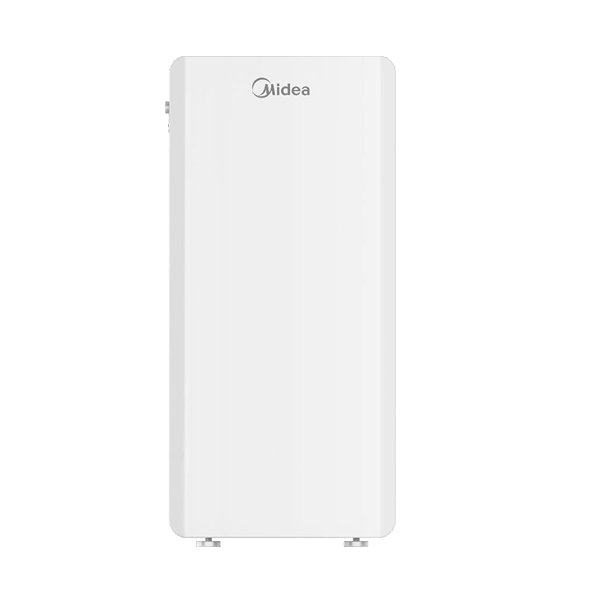

Smart Low Voltage Energy Storage 12kWh

Compatible with Midea Single Phase Hybrid Inverter

• Flexible expansion options
• Reliable and patented charging & discharging technology
• Easy installation

Battery Parameters

• Nominal Voltage: 51.2V
• Nominal Energy: 12.28kWh
• Discharge Voltage: 45 ~ 54V
• Charge Voltage: 51.5 ~ 57.6V
• Con. Charging Current: 200A
• Con. Discharging Current: 200A
• Max. Discharging Current: 230A
• Con. Discharging DC Power: 10000W
• Max. Discharge DC Power: 30000W If > 4units in parallel
• Operating Temperature: Charge: 0 ~ 55°C / Discharge: -20 ~ 60°C

General Data

• Scalability: Paralleling Max 12, refer to user manual
• DoD: 90%
• Communication: CAN/RS485
• Cycle Life: ≥6000cycles
• IP Grade: IP31
• Installation: Wall Mount / Floor-standing
• Dimensions – W*D*H: 460*200*980(mm)
• Weight: 113Kg
• Warranty: 5 years product / 10 years performance
• Certification: UN38.3/CE/IEC62619

* When the temperature < 0°C or > 45°C, the product performance is limited.
